Dell Inspiron 13 7378 Memory Modules Replacement

Geschrieben von: Terrence15

Kommentare: 1

Dell Inspiron 13 7378 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 - 25 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Memory Modules.

Werkzeuge

Essential Electronics Toolkit

Schritt 1

6UNT2vqHePR5EXVU

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.
Lift the Mylar to access the memory module.

Schritt 2

aW3GwNOf1fH4g4IR

aW3GwNOf1fH4g4IR

KHIacstKuj1XLZ3S

EJwllGVPS2UJFeDD

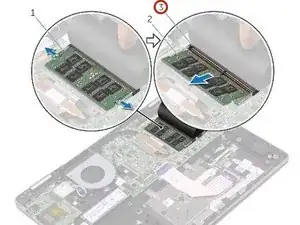

Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory module pops up.

Schritt 3

W5AZJiQdYWerLMDF

W5AZJiQdYWerLMDF

JqFEixsMXeCLCIAD

Remove the memory module from the memory-module slot.

Schritt 4

DVD3NcIgTeEjUUjS

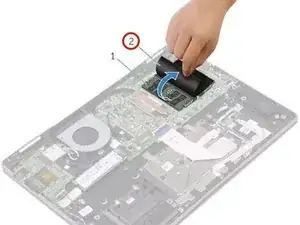

Lift the Mylar to access the memory-module slot.

Schritt 5

vF5CqeadVD3Z5fNO

Align the notch on the NEW memory module with the tab on the memory-module slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
