HTC Vive Controller Trigger-Taste tauschen

Geschrieben von: Christopher Amaro
  • Kommentare: 41
HTC Vive Controller Trigger-Taste tauschen

Schwierigkeitsgrad

Mittel

Schritte

22

Zeitaufwand

45 Minuten

Einleitung

Durch intensive Benutzung, kann die Trigger-Taste des HTC Vive Controllers kaputt gehen. Um an die Trigger-Taste heranzukommen, muss das Motherboard ausgebaut werden. In dieser Anleitung wird der Austausch der Trigger-Taste gezeigt.

  1. qspXEGpclMcc4FU6
    qspXEGpclMcc4FU6
    f5aVdykiHKTKwZrt
    WaHUHm3CCPZva2kE

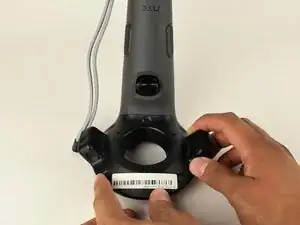

    • Drehe den Vive Controller so, dass der untere Ring nach oben zeigt.

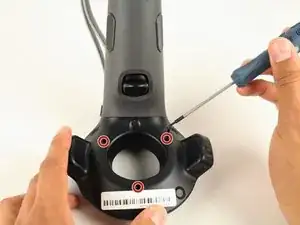

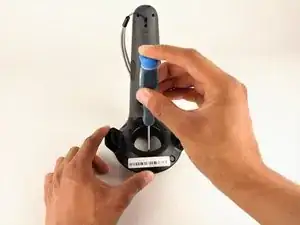

    • Entferne die drei schwarzen 21 mm T5 Torx Schrauben am unteren Ring.

    Where can I buy new t5 21 mm screws? Mine are getting stripped out!

    jeremyvanwoerden -

    Where can you get replacement batteries?

    Mike Justice -

    The middle bottom screw may have some form of warranty sticker on it if you have a Vive Pro wand (which is purple). Mine had this. Easy enough to remove and get on with it.

    sodiboo -

  2. EGCPx1qHeDmAW5Ml
    EGCPx1qHeDmAW5Ml
    jIuFdwxxDs4sPAoK

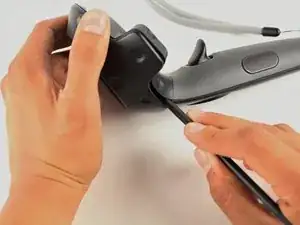

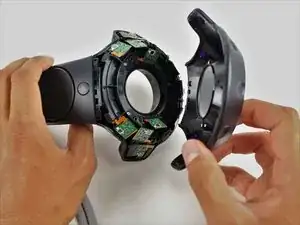

    • Benutze einen Nylonspudger, um die Abdeckungen des unteren und des oberen Rings an allen Kanten voneinander zu lösen.

    • Entferne nur die Abdeckung des oberen Rings, indem du sie mit der Hand nach oben ziehst.

    My top saucer was REALLY stubborn. Don’t force it with your hand, use the spudger to separate it at the seam. Try not to poke your spudger in too deep, there are internals just inside the seam.

    trevorsklar -

    The second time around, I learned why it was so stubborn. The picture suggests that you should start at the base of the saucer and work your way around, but that’s backwards.

    Start separating with your spudger at the distal side of the saucer and work your way toward the handle. Then for the last part, pull the piece up and away, like peeling a banana. See the second picture for the bottom half of the saucer, below. Do the same on the top.

    trevorsklar -

  3. eopOkINCcVTJW1m1
    eopOkINCcVTJW1m1
    iTZHnfipdduRqsQD

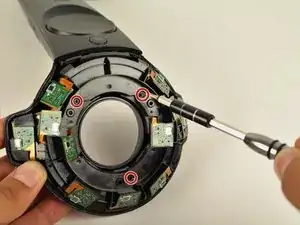

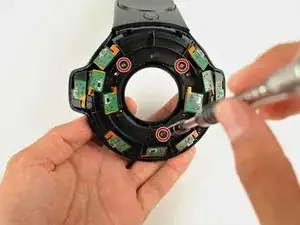

    • Entferne die drei silbernen 12,8 mm #00 Kreuzschlitzschrauben vom freiliegenden oberen Sensorpanel.

    It’s Phillips 0, not 00.

    trevorsklar -

    You do not need to remove these screws to remove the bottom saucer. They provide stability to the two halves of the donut.

    pacoavocado -

    I had the same experience. Putting the screws back in made the bottom shell easier to remove.

    Nate Plamondon -

    I concur, you don’t need to remove these screws to take the bottom shell off.

    I found mine had ph#000 screws size, not ph#00.

    Rocko the fixit cat -

    please do not remove the Phillips-head screws it is not necessary to remove them.

    Darkwolf Darkside -

  4. RwISVSeNWEEMabNP
    RwISVSeNWEEMabNP
    MpnwlFakAusPfs3P
    ESDnXEfXK21LaofB

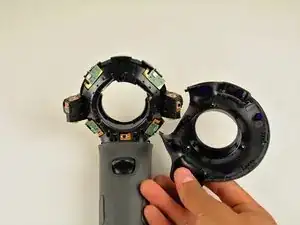

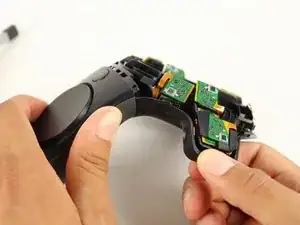

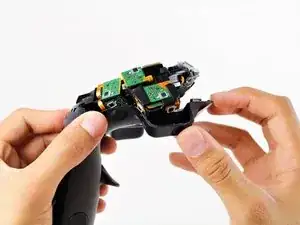

    • Ziehe die Abdeckung des unteren Rings vorsichtig mit der Hand ab.

    • Es ist hilfreich, die Basis des Controllers mit deiner anderen Hand zusammenzudrücken (wie im zweiten Bild gezeigt), um das Entfernen der Ringabdeckung zu erleichtern. Dadurch wird das Ablösen der Klammern vereinfacht und es kann vermieden werden, dass sie kaputt gehen.

    I found the re-assembly of this difficult until I concentrated on two areas - the lugs which go into the handle first, then the central ring. My earlier concern was for the optical sensors on the wings but these snapped into place easily as the central ring was manoeuvred.

    Doug -

    From what I can tell, there are two clicks on each side? one is quite easy, then the other one seems to require considerable force pushing down and on the side, I had to do it one side at a time and found two YouTube videos performing this step to use as reference. I have the vive pro wands and not the originals, so this may explain the difference. This felt very wrong to me.

    sodiboo -

  5. UOWqkw4uFOpoxUxW
    UOWqkw4uFOpoxUxW
    2norTKXKua4vfSLO

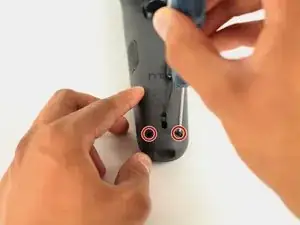

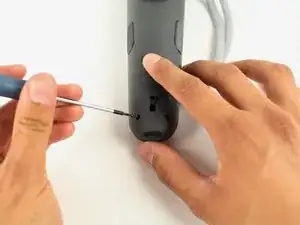

    • Entferne die beiden schwarzen 5,2 mm T5 Torx Schrauben auf dem grauen Rückgehäuse.

  6. wKWxaK3AYGHu4kYK

    • Drehe den Vive Controller so, dass der freiliegende untere Sensorring nach oben zeigt.

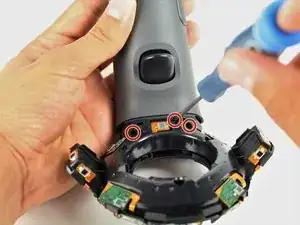

    • Entferne die drei schwarzen 5,2 mm T5 Torx Schrauben.

    Leave the middle screw where it is (the one being unscrewed in the picture). That screw holds the two halves of the photodiode assembly together, not the case.

    trevorsklar -

    five screws… two at bottom

    andrew sauter -

    I concur with trevosklar, don’t need to remove center screw to remove front panel (pad cover).

    Rocko the fixit cat -

  7. 2L3YKSAgk6xB2Gmq
    2L3YKSAgk6xB2Gmq
    qEFqwKVrCSACpHDP

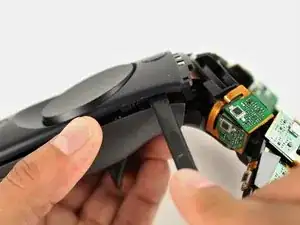

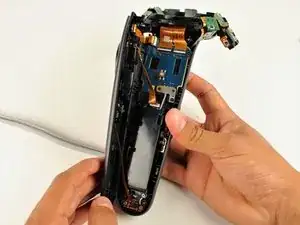

    • Löse das Frontpanel mit einem Nylonspudger ab, indem du mit dem Spudger um die Kanten des Griffs fährst.

    • Löse das Frontpanel nur um die Kanten herum ab. Versuche nicht, es komplett zu entfernen.

    • Klappe die rechte Seite des Panels vorsichtig nach links.

  8. ZUWhRIxeXJ11ArsI

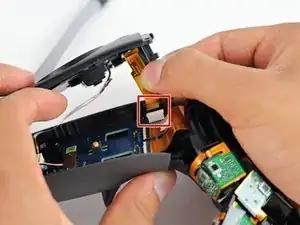

    • Trenne das obere Flachbandkabel sorgfältig ab, indem du es mit zwei Fingern nach oben weg vom Motherboard ziehst.

    • Versuche nicht, die Flachbandkabel vom Frontpanel abzulösen.

    You do not have to remove the ribbon cables from the plugs…you can carefully work the battery holder around them and remove it…being very gentle. And the black part of the handle will stay attached to the cables and be in the way. But removing the cables does make it easier to access the area for the battery, just not completely necessary.

    controll -

  9. qFWyWN2RxMJGm6IN
    qFWyWN2RxMJGm6IN
    Lr3HUlIGprrlUOMS

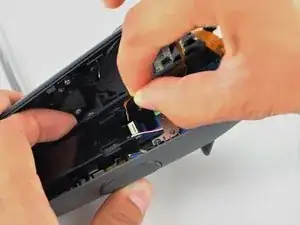

    • Trenne das mittlere Flachbandkabel sorgfältig ab, indem du es mit zwei Fingern nach oben weg vom Motherboard ziehst.

    • Versuche nicht, die Flachbandkabel vom Frontpanel abzulösen.

    where can one buy the ribbon cable.

    Luigi Munoz -

  10. wl5HFJQW4a4lXNhy
    wl5HFJQW4a4lXNhy
    jqk4JmFF4wCyqiHN
    tGdDUMVWB21k6Lfi

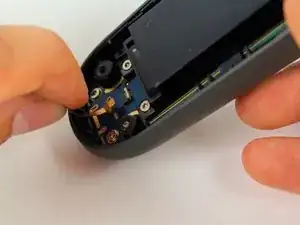

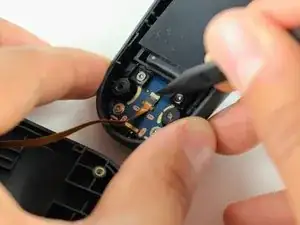

    • Hebe die weiße Lasche mithilfe eines Nylonspudgers um 90° an.

    • Trenne das untere Flachbandkabel ab, indem du es vorsichtig mit beiden Fingern nach unten ziehst.

    Hallo what is the name of this conector because i Broker it

    Happy Forscher -

    Yeah I did as instructed only to realize after that my gen 1 vive controller does not do that, and i desoldered the power button ribbon. That cable, does NOT detach on my model. destroyed.

    Algol Gaming -

    On my controllers, there was yellow tape over these? and in some other places as well? Why?

    sodiboo -

  11. ex2nOfqCh4UvnaZY
    ex2nOfqCh4UvnaZY
    VWdiA2mNpNTk6kXY

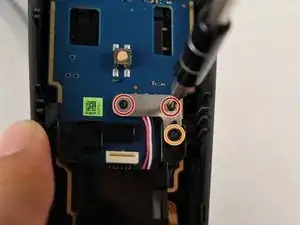

    • Entferne die beiden schwarzen 2,8 mm #00 Kreuzschlitzschrauben von der silbernen Platte.

    • Entferne die schwarze 5,8 mm #00 Kreuzschlitzschraube in der unteren rechten Ecke der silbernen Platte.

    I don't have this metal piece in my first gen vive wand for some reason. Instead, there is just a piece of kapton tape covering the connector. It does not seem there are even screw holes for it.

    TheRedStormer -

    You do not need to remove the top two screws circled in red, just the four around the battery case (as shown in Step 13 and 14). Skip Step 12 which involves removing the plate.

    Jon Johnson -

  12. 1VVAHSsuxyImblPZ

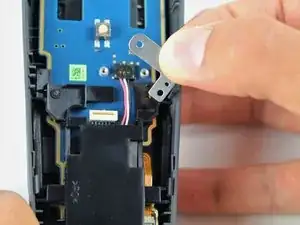

    • Entferne die silberne Platte mit den Fingern.

    There is no plate on mine, only tape covering it.

    tamgoddess -

    I found this to be true of mine as well (purchased 2018).

    Renjamin -

    Same with mine, also purchased 2018. It seems the silver plate part can be skipped for later models.

    Slendy Nerd -

  13. yAFWwBpDPbelS2Pw

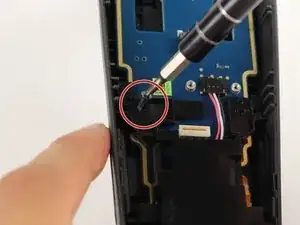

    • Entferne die schwarze 5,8 mm #00 Kreuzschlitzschraube oben links im Akkurahmen.

  14. JLMt55eTqD2E1QVB
    JLMt55eTqD2E1QVB
    qvbAYEYcKGbHdNKM

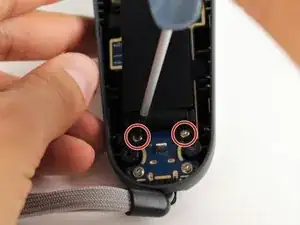

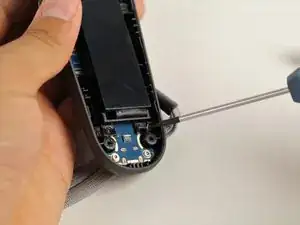

    • Entferne die beiden silbernen 4,2 mm T5 Torx Schrauben unten im Akkurahmen.

    On my controller these were Philips 000 5.8mm screws, the same as in the previous step.

    Daan Steenmeijer -

    Second the above with a slight correction. Phillips 00.

    tamgoddess -

    I also needed the Philips 000 for steps 11 - 14. Controller purchased in 2018.

    Renjamin -

  15. Nb6ywHODQTB4ZvsL
    Nb6ywHODQTB4ZvsL
    LCgamK1HIJvvJl52

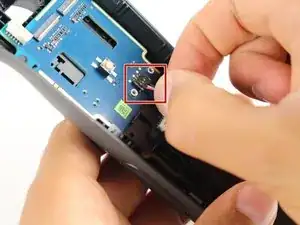

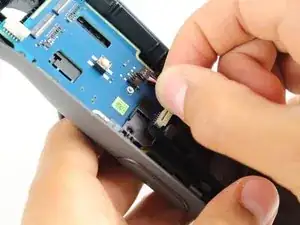

    • Trenne das dreipolige Kabel ab, indem du es mit den Fingern fasst und nach oben abziehst.

    Don't pull the battery cable! You risk pulling the pins out of the socket. Happened to me. I don't know how to do it properly but I had to use a fine flat screwdriver to try to get the socket out. It got a bit mangled unfortunately.

    Rob -

    As Rob said, don't pull it! The connector comes out vertically, not horizontally. The ridges along the side prevent the connector from sliding out horizontally. To remove it, insert a small screwdriver under the cables and gently push it to wedge the connector out. Connecting it is easier, just press it down over the top to snap it in place.

    Jon Johnson -

  16. KyAwWyDltI2TItyB
    KyAwWyDltI2TItyB
    2BBCLuMQRkdAETeT
    Q5Pqpf6CFQtiar6U

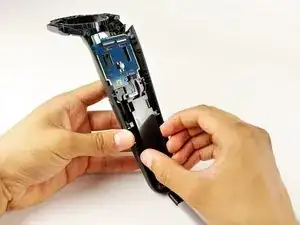

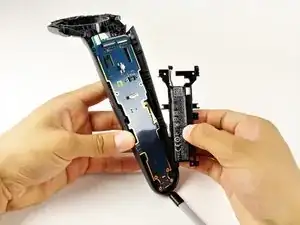

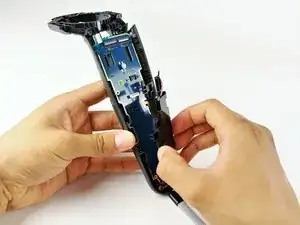

    • Hebe den Akkurahmen ab, um den Akku aus dem Vive Controller zu entfernen.

    Suddenly, here the electronics of the saucer are gone, but there’s no previous step mentioning its removal. This is kind of important because loosening the ribbon cables attaching it to the mainboard is a bit finicky.

    Olav Reinert -

  17. wMGoMoZiKDRUwnRN

    • Entferne die beiden schwarzen 5,8 mm #00 Kreuzschlitzschrauben oben am Motherboard.

    These should be the silver screws not the black screws

    Thomas Edwards -

    Yeah, I think he switched the bottom battery screws with these in a previous disassembly. (see my comment at step 14) I’m opening mine for the first time since new purchase and the motherboard has 4 T5 screws.

    Daan Steenmeijer -

  18. DIgOQPLd4FhY1VeO
    DIgOQPLd4FhY1VeO
    LrXACqwbAkSgNjFO

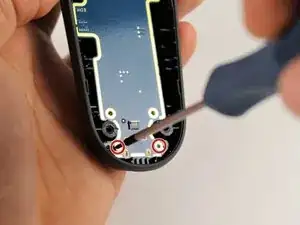

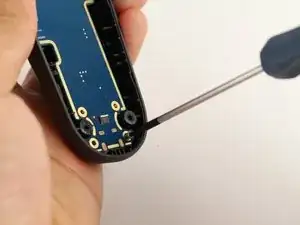

    • Entferne die beiden silbernen 4,2 mm T5 Torx Schrauben unten am Motherboard.

  19. wgxYIoCiA1bUVCNW
    wgxYIoCiA1bUVCNW
    FC5rCCsU2ZNMWUEe
    WO4jrxcybU1WMmSL

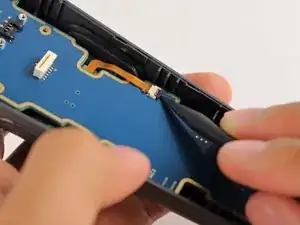

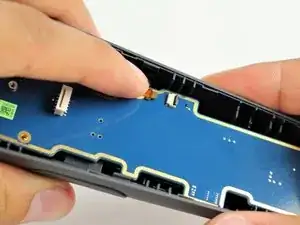

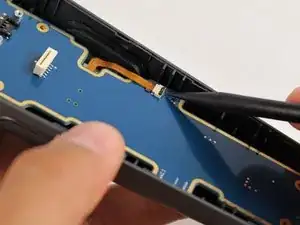

    • Klappe die schwarze Lasche mit einem Nylonspudger um 90° hoch.

    • Trenne das Flachbandkabel vorsichtig mit deinen Fingern ab.

  20. GBRWYDDDoHMPPr23
    GBRWYDDDoHMPPr23
    2BF5snL3howcnDtN
    tHiCiDE3ZdBL1vmt

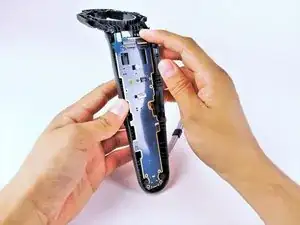

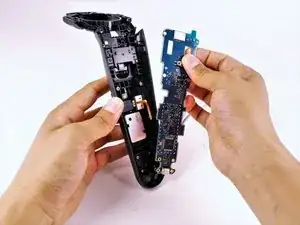

    • Hebe das Motherboard mit deinen Händen hoch und aus dem Vive Controller heraus.

    what is the benefit of the rectangular silver steel or ironic metal ,that iside the htc vive hand controller.?????

    is it to solve some issus with the Mpu6500 sensor ??

    or related to get rid of interferrences ??

    the rectanguler metal piece is near to the mother board and the battery in the following image :-

    https://d3nevzfk7ii3be.cloudfront.net/ig...

    Thanks in advance!

    Moatazzu993 -

    I believe it’s just a weight to help balance the controller by shifting the center of gravity closer to the rear/bottom end. It doesn’t connect to anything, and the board has its own shield. So, just a slab of metal.

    Jeff Suovanen -

    Awesome THANKS. … uh … where do I get another motherboard? DoH!

    John Crocco -

    Anyone know of a good replacement button for the trackpad press button? (The one on the top side, tan or pinkish colored.)

    Sean Bowers -

  21. eF3e3PAJHG1qcxkD

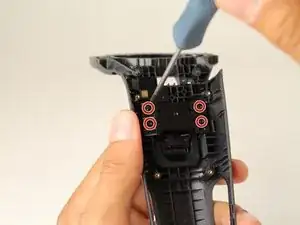

    • Entferne die vier schwarzen 5,2 mm T5 Torx Schrauben vom inneren Teil der Trigger-Taste.

    My Vive was purchased in 2019 and these screws are P5 Pentalobe not Torx.

    Joshua Emerson -

  22. c2PRqfALQvLYV1hC

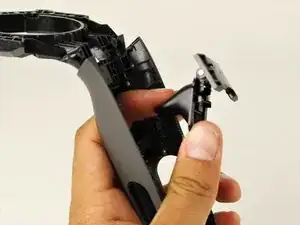

    • Drücke mit dem Finger auf die Trigger-Taste, bis sie sich aus dem Front Panel herauslöst.

    Thank you! This saved me a lot of money. I could fix the slightly pushed in trigger myself.

    Kristof Pauwels -

Abschluss

Um dein Gerät wieder zusammenzubauen, folge den Schritten dieser Anleitung in umgekehrter Reihenfolge.
