Lenovo Thinkpad X240 RAM Replacement

Geschrieben von: Joe Edmondson
  • Kommentare: 3
Lenovo Thinkpad X240 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

RAM giving you any trouble? Follow along while we show you how to get it replaced! All you need is your iFixit Toolkit.

  1. AroxIMOxJ46uqpnX

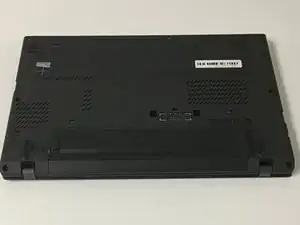

    • Flip the laptop up side down as shown in the photo.

  2. GUeehpfWucPHNF3G
    GUeehpfWucPHNF3G
    OQlscafbc2cEPqo3

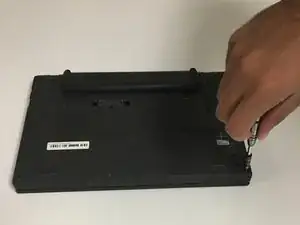

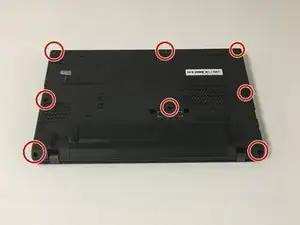

    • Remove the 8 0.2mm Phillips screws connecting the back cover to the laptop.

  3. SGCGmB6aZbiTcbLu

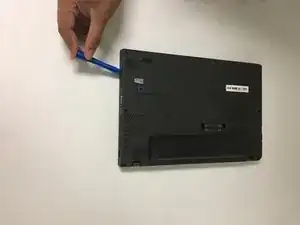

    • Remove the back cover using the opening tools.

    • Gently use the plastic opening tools to prevent scratching your device.

  4. iiFfdyn6PfVtEsmJ
    iiFfdyn6PfVtEsmJ
    vHGN6tGTgZeRLLfc

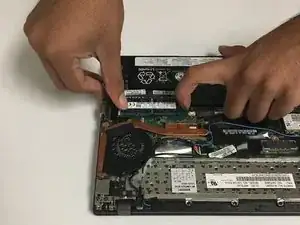

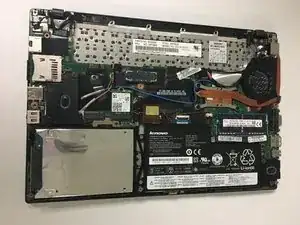

    • Remove the RAM stick by carefully popping its holders out of place.

    please, before opening the device, disable the battery internal first in BIOS

    purnomo abdillah -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Joe Edmondson

Mitglied seit: 20/09/17

326 Reputation

2 Kommentare

Does this Thinkpad really have only one RAM slot? Or is there another one on the back of the board (i.e. under the keyboard)?

Sebastian Swirski -

Would I be able to add a 16gb ram stick in it? Even though the highest spec config that the laptop ships with is only 8gb?

Mahir Max -
