Sony Cyber-shot DSC-W690 LCD screen Replacement

Geschrieben von: Will Norris
  • Kommentare: 0
Sony Cyber-shot DSC-W690 LCD screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

30 - 45 Minuten

Einleitung

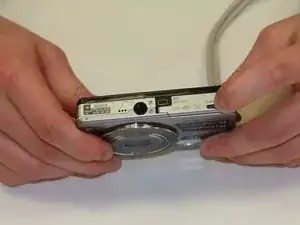

  1. 3q3VPDQOliQk5SLY

    • Locate the battery door.

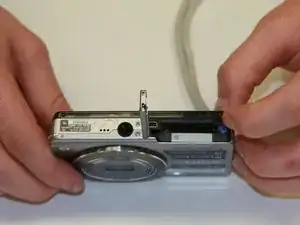

  2. DHChdysKvrHG2hfq

    • Open the battery lock by pushing the lid towards the inside and lifting.

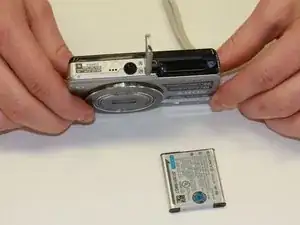

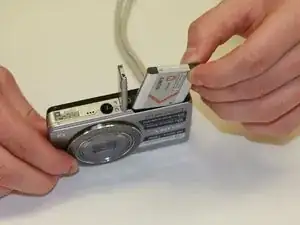

  3. iAybrgKNpEruCaUZ
    iAybrgKNpEruCaUZ
    3wSgasmyFjyX6rkO

    • Remove the battery.

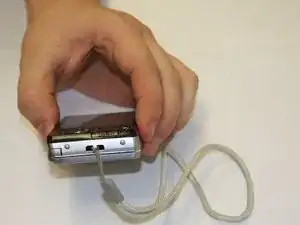

  4. eTHZMXO3qMFDHBjR

    • Remove the wrist strap from the camera.

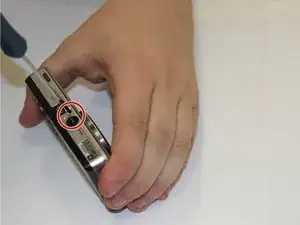

  5. cO4JspnwOIQuefXx
    cO4JspnwOIQuefXx

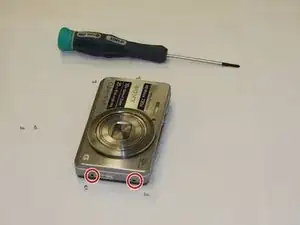

    sLKHIgh3VVICH5La

    • Remove all six 3 mm screws from the outside of the camera using a Phillips #00 screwdriver.

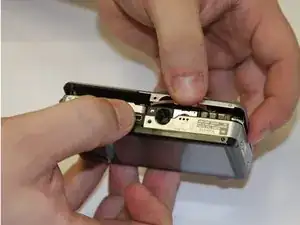

  6. pjOhHNrbkQTMmtfF
    pjOhHNrbkQTMmtfF

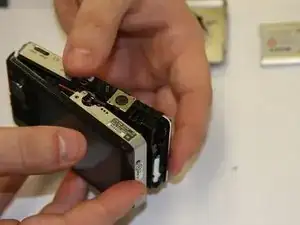

    PNOMapTDhnFURavb

    • Carefully pry the case apart by pulling the front and back sides in opposite directions.

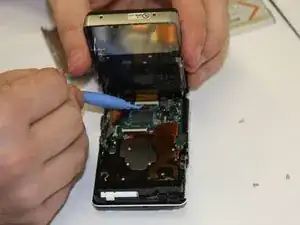

  7. 2Kx3ylGeFO14jOkC

    • Use spudger to delicately open wire contact.

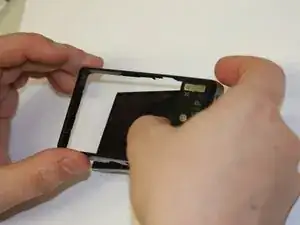

  8. YMMqepwTkrHcLHOe

    • Gently push the LCD screen out of back case.

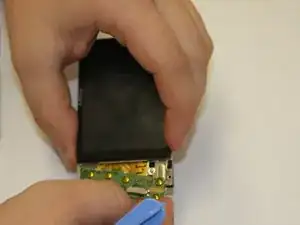

  9. LShXFxpBYagj2NOi

    • Remove the button circuit board.

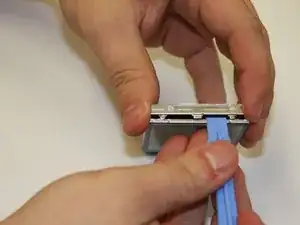

  10. FEyZi3RCjGNEc6td
    FEyZi3RCjGNEc6td

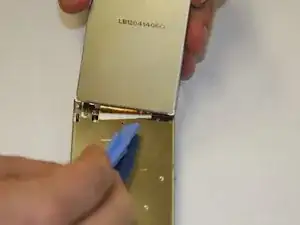

    kGCQQvKDYIINkSSO

    • Use spudger to pry apart the LCD screen from the support bracket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
