B&O Beoplay EX Teardown

Geschrieben von: zchenmd
Veröffentlicht: 03/06/23
  • Kommentare: 11

B&O Beoplay EX Teardown

Veröffentlicht: 03/06/23

Teardown

Einleitung

Einen Blick in die High-End true wireless Kopfhörer.

  1. njcsxIh4shivISct
    njcsxIh4shivISct
    3sv34AnHx2g6mJYE
    6PVLhfS6rNviHT3x

    • In dieser Kammer befindet sich eine Lautsprechereinheit und eine Platine.

    • Die neu designte 9,2mm Lautsprechereinheit wird von einem transparenten Cover geschützt.

    Was it difficult opening the anterior chamber?

    Chrispy P -

  2. CWRmKq1Z6NxeFhOb
    CWRmKq1Z6NxeFhOb
    tjnbQbTssRDKUycT

    • Geschafft!

  3. ttG2ccvEANXKNTrW
    ttG2ccvEANXKNTrW
    TdX1oS11DWhAIEmC

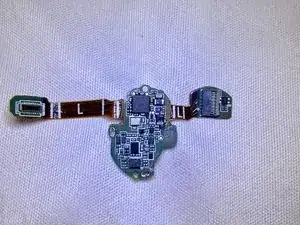

    • Die Platine kann einfach entfernt werden.

  4. 2SvpWOf6XFVStsOP
    2SvpWOf6XFVStsOP
    lDKZmT6DCf1SKbN4

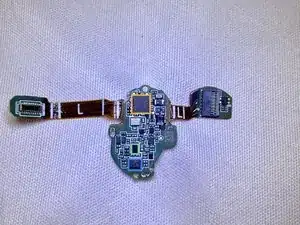

    • ROT: Emerald 4.1 BS200100

    • Orange: 3460 3 K AWBX

    • Himmelblau: CTD L2B

    • Grün: 20401 ZOORD

  5. ZFQRmSEbqxfjuZaN
    ZFQRmSEbqxfjuZaN
    RBxVEuTvbxsoegYX

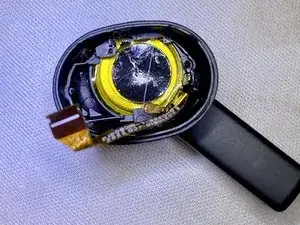

    • Der Akku war in einer vollkommen anderen Ecke zu finden als die Platine.

    • Wenn du den Akku wechseln willst, musst du die Kammer dahinter öffnen.

    Can you see what the battery type / brand is ??

    DH Partner -

    I did not take apart it. However, from another source, I can inform you that the battery is LIR ZJ1254H 3.85V, which was made by Zijing technology. I will update a picture.

    zchenmd -

    Is opening the cavity behind the battery difficult? I already have a set of ifixit tools.

    Chrispy P -

    Is the battery glued into that yellow stuff? How to replace it?

    Alexander Lykke -

  6. odZSpqODGQrmobCd
    odZSpqODGQrmobCd
    A35qT5VTs3HuCDKX
    CDcwwFdaFFJQkKGa

    • Geschafft!

    How do you take the case apart?

    Si Cleaver -

    Used a thin metal pry.

    zchenmd -

  7. VdG2sJrMpBDGhksQ
    VdG2sJrMpBDGhksQ
    VPZRNhZnG5Oyjysm

    • Geschafft!

Tinte & Feder

zchenmd

Mitglied seit: 10/03/21

253 Reputation

4 Kommentare

I have a dead pair of Beoplay E6 headphones (similar to these) and would be curious to open mine up to. I'm new to all of this, what type of tools do I need to open the compartments of the headphones? Thank You

SamJ7 -

Nothing special, warm it and twist it until open by your hands. I know it’s hard, but be careful not to damage the parts.

zchenmd -

Where to get the batteries for the buds and the case if one might try this?

Alexander Lykke -

I also have dead Beoplay E6. Can you provide a diagram for the 3 button inline unit as the headphone will not turn on (no lights) although 5v getting to the inline unit??

Clive Holden -
